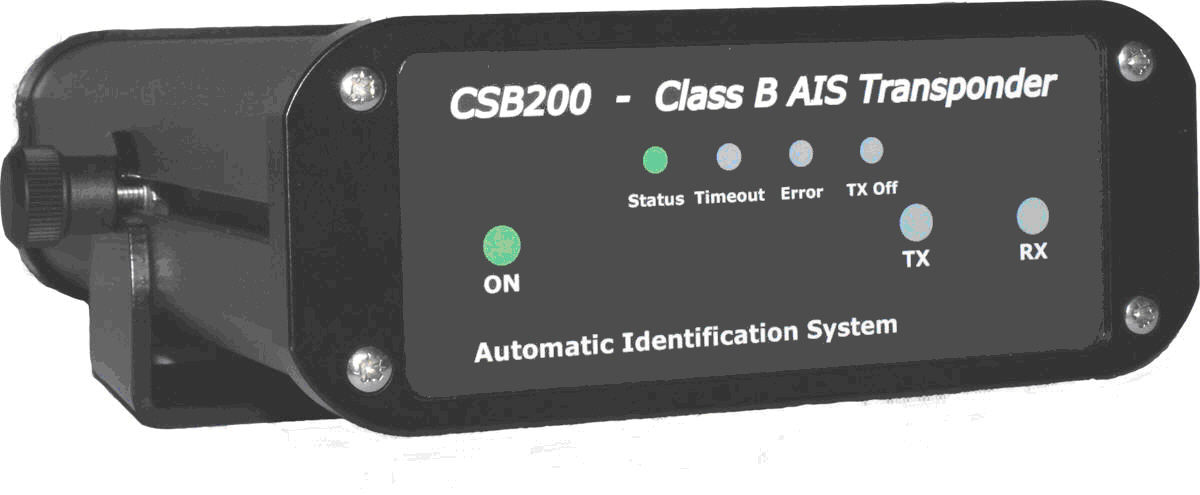

CSB200 |
|
| Suitable
for leisure and for professional use when a type 'A' transponder is not required |
CSB200 is a low cost, high performance class B AIS transponder (Transmit and receive) unit, that
enables the reception of AIS information as well as transmitting own vessel position and other information to other AIS equipped vessels.
The CSB200 installation is quick and simple,
requiring only the connection to a 12v DC supply, VHF* and GPS* antenna.. Once connected to a computer running seaPro or other compatible viewer program you can display other AIS equipped vessels within VHF range. Information transmitted
from vessels fitted with class A AIS Transponders include name, call
sign, position, heading, speed, destination, type and size
of vessel.
Note: The CSB200 is compatible with any chart/ECDIS
system capable of accepting standard NMEA 183 AIS sentences,
such as seaPro standard or above.
* Not included |

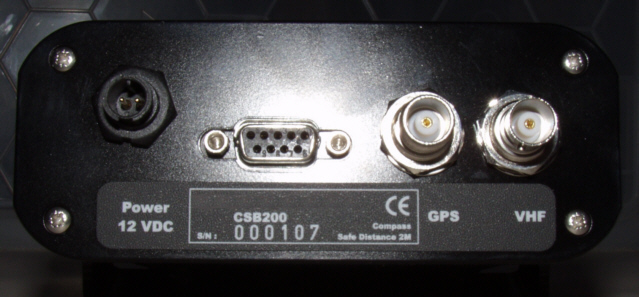

| View back |

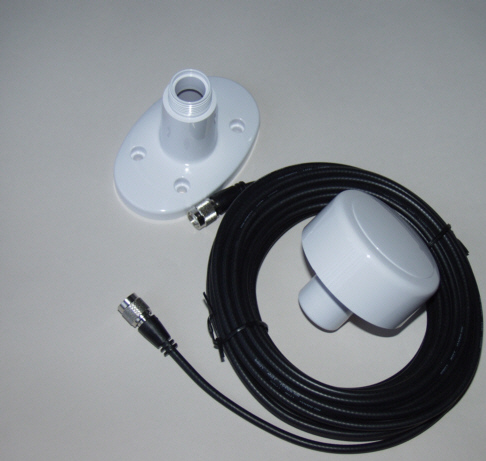

Optional GPS antenna |
Optional VHF splitter |
|
|
 Buy now |
| |
|
 |
Low-cost anti-collision / monitoring system |
|
Receives
positions and other data from AIS equipped
vessels within VHF range |
|
Transmits own vessel's details including position, vessel name, MMSI number, Type of vessel, Vessel dimensions, Speed (SOG), Course over ground (COG), Heading (external sensor required/ from seaPro) |
|
Optional
PC viewer program with backdrop chart. |
|
Built in GPS (requires external GPS antenna) |
|
Compatible with the seaPro professional and leisure range of software, for full charting, navigation
and AIS capability. |
|
Industry compatability standard NMEA 183/IEC61162-2
output format for compatibility |
|
Supports all AIS sentences - both class A and B received messages. |
|
Simple connection
and setup |
|
Information that can be received includes:
- Name of vessel
- Call sign
- Type of vessel
- Destination
- Speed (SOG)
- Course (COG)
- Heading
- Position
- Navigational status
- Rate of turn
- Vessel dimensions
- MMSI number
- Aids to Navigation (AtoN)
- Broadcast Messages
|
|
Information that can be transmitted
- Name of vessel
- Call sign
- Type of vessel
- Speed (SOG)
- Course (COG)
- Heading (external sensor required)
- Position
- Vessel dimensions
- MMSI number
|
Improved
safety & collision avoidance
One of the great dangers to vessels
at sea is not knowing the position, details or
intentions of other vessels. New regulations for
commercial craft to fit AIS transponders will
be a significant step forward.
AIS enables vessels fitted with
an AIS transponder or receiver to be aware of
each other and display their position and other
details. When combined with a chart system the
intentions of larger vessels required to fit AIS
transponders is clear enabling smaller craft to
alter their intended track well in advance so
as to avoid potential conflict, especially in
confined waters.
|
|
Typical
uses include |
|
Collision avoidance - monitor approaching AIS equipped vessels,
including those hidden from radar or visual
view. Combine with the optional seaPro
navigation products to give advanced warning
of potential collisions, CPA etc.
|
|
Improved safety by letting other vessels know your position and navigation information(COG/SOG/etc) |
|
Small
port/harbour monitoring and tracking of
vessels, where a full AIS transponder is
not cost justified |
|
Extend
monitoring range for larger harbours
and ports where multiple systems can be
linked via a network or internet. |
| |
Technical
Description
The CSB200 is a low cost AIS Class “B” Transponder designed specifically for the
small Commercial Boat, Fishing Boat and Leisure Markets. It meets the new
Class “B” Standard that allows vessels that are not required to fit Class “A”
units to voluntarily fit an AIS (Automatic Identification System) transponder.
Electrical:
Power supply: 12 Volts DC
Current average: 6W
Current continuous: 0.5A
Receiver:
Receivers x 2 ( one time shared between AIS/DSC)
Frequency:
156.025 - 162.025MHz
Channel spacing: 25KHz
Sensitivity: -107dBm
Message Error Rate: 20%
Adjacent Channel: 70dB
Blocking: 84dB
Transmitter:
Output Power: 1-3W
Modulation: GMSK
Electrical Interface:
RS232 - 115.2/38.4
NMEA - 38.4 bi-directional
Connectors:
VHF Antenna: BNC
GPS Antenna: TNC with 5v output for active antenna
I/O Connector: 9Pin Serial
Power: 2 Pin
Physical:
Length: 165mm, Width: 120mm, Height: 50mm Weight: 600g
Mounting: Trunnion bracket
Designed to meet:
IEC62287
Draft Class B Standard
IEC61162
Digital Interfaces
CE EN-60945: EN 6100-6-1/2
FCC part 15
Options
PC viewer program
|
|
Download CSB200 manual |
Download certification document |
Options
Euronav seaPro navigational software with AIS
Active GPS antenna
AIS Antenna splitter
|
|
| |
|
|
